Overview

I wanted a “drop‑it‑in and forget it” music overlay that:

• Doesn’t require logging into a dashboard every boot
• Works with private Last.fm accounts
• Is styled entirely via a shareable URL
• Looks good over dark/light scenes
• Hides itself gracefully when paused
• Handles odd OBS / layering workflows (cropping, blending, filters)

Nothing I found hit all of those and most SaaS overlays gate private scrobble access or hide themes behind paywalls. So I built a Next.js widget that encodes its full config in the URL hash (no server persistence) plus localStorage caching for edits.

Outcome: a self‑contained /w#<base64> overlay page you can paste into OBS as a browser source. Theme changes, positioning, text shadows, conditional visibility, and even a private session key are in that hash. No database. No cookies needed for viewers.

Why I Built It

Initial Idea: a hard‑coded component hitting Last.fm’s recent track endpoint. Here are the starting issues:

• Private accounts returned nothing (needed session key)
• Couldn’t reuse the same overlay across scenes with minor variants
• Manual CSS edits every time I wanted a subtle font or shadow tweak
• Paused music with no way of catching or changing
• Color accents clashed with album art (needed controlled theming)

So: I introduced a structured WidgetConfig, a lossless encode/decode layer, per‑element shadow helpers, adaptive polling, and a session key pass‑through for private profiles.

Scope stayed intentionally small: just enough primitives to style everything without rewriting components.

System Overview

Core building blocks:

1. WidgetConfig Type – authoritative shape for all theme + behavior
2. Base64 Hash Encoding – /#w#<b64> carries config (client only)

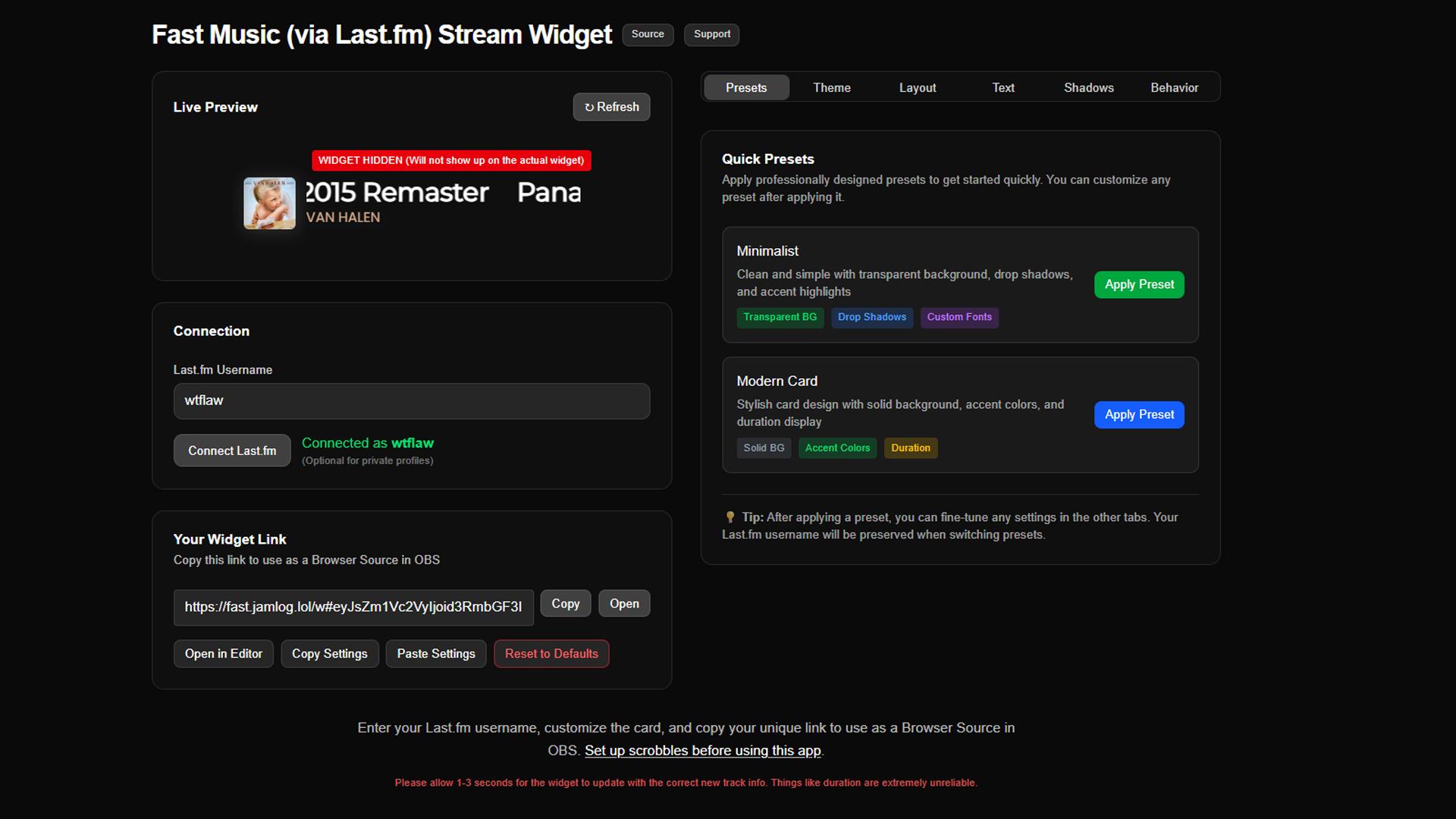

3. Local Editor (/) – interactive form that previews + regenerates share URL
4. Runtime Overlay (/w) – pure reader; decodes hash and renders
5. Private Profile Support – optional embedded Last.fm sessionKey
6. useNowPlaying Hook – adaptive polling + progress estimation
7. Per‑Element Text Shadow Utilities – fine‑grained shadow toggles
8. Image Proxy Route – avoids mixed content / CORS + future caching
9. “Hide When Paused” Logic – renders a zero‑footprint state
10. LocalStorage Persistence – QOL: reopen and continue styling

Nothing is persisted server‑side share the URL and others see exactly your theme (except private scrobbles unless you intentionally include your session key).

Data & Config Model

Example (shortened) WidgetConfig excerpt:

interface WidgetConfig {
  lfmUser: string;
  sessionKey?: string | null;      // Private profile access
  behavior: {
    hideIfPaused: boolean;
    showAlbumArt: boolean;
    compact: boolean;
  };
  theme: {
    accent: string;
    background: { mode: "solid" | "transparent"; color: string };
    text: {
      title: string | "accent";
      artist: string | "accent";
      album: string | "accent";
    };
    shadows: {
      title?: ShadowSpec | null;
      artist?: ShadowSpec | null;
      album?: ShadowSpec | null;
    };
    fonts: {
      family: string;
      weightTitle: number;
      weightMeta: number;
    };
  };
  layout: {
    direction: "horizontal" | "vertical";
    gap: number;
    coverSize: number;
  };
  advanced: {
    progressBar: boolean;
    progressBarHeight: number;
  };
}

Minimal, theme‑first, forward‑extendable. Hash includes only JSON to Base64 (no compression yet—small enough).

Flow (Build → Share → Display)

1. Open / – editor loads defaults OR localStorage copy
2. Enter Last.fm username (auto‑fills if connected privately)
3. (Optional) Connect + authorize to store sessionKey
4. Adjust colors / shadows / fonts / layout
5. Share URL auto‑updates (/w#<b64>)
6. Paste that URL into OBS Browser Source:
   • Width: 600–900 (varies with layout)
   • Height: 140–220
   • Enable “Refresh browser when scene becomes active” if rotating scenes
   • Set CSS if needed: body { background: rgba(0,0,0,0); } (already transparent)
7. Music changes → overlay auto updates
8. Paused? If configured, overlay collapses (no awkward stale display)

Private Profile Support

• When you authenticate, a sessionKey is stored locally
• Editor injects it into the encoded widget URL
• Overlay uses it for scrobble API calls if present
• You can strip it before sharing a “public safe” variant

Important: anyone with a hash containing your session key can see what the API would return for you. Treat it like a lightweight token—avoid posting publicly unless you’re fine with that.

The useNowPlaying Hook

Responsibilities:

• Poll /api/lastfm/recent (optionally /trackInfo) with dynamic cadence:
  • Faster while track is active
  • Slower during inactivity
• Generate an estimated progress bar by locally tracking elapsed ms
• Stabilize updates to prevent UI flicker when Last.fm lags
• Expose:

{
  track,          // { name, artist, album, imageUrl, nowPlaying?, ... }
  isLive,         // bool - currently “nowplaying”
  isPaused,       // heuristics (no “nowplaying” + same timestamp)
  progressMs,
  durationMs,
  percent,
  isPositionEstimated
}

Design choice: no websockets—polling + estimation = sufficient fidelity for music overlays.

Where It Shines

• Zero server persistence (portable + privacy‑friendly)
• Entire state migrates via a link (excellent for scenes / backups)
• Fast iteration: add a theme field → encode → auto-shipped
• Private account support without building an auth portal
• Clear separation: Editor (stateful) vs Widget (pure)
• Stream overlay friendly: transparency, compactness, low CPU
• Extensible theming (can add outlines, gradients, animations later)
• Safe failure modes (no API = clean hidden state instead of broken markup)

Setup Guide (Fresh Clone)

1. Clone repo
2. Create .env.local:

   LASTFM_API_KEY=xxxx
   LASTFM_API_SECRET=yyyy

3. Install deps:

   npm install

4. Run dev:

   npm run dev

5. Open http://localhost:3000
6. (Optional) Click “Connect Last.fm” → authorize → returns with session stored
7. Enter username (auto if authenticated)
8. Tweak styling → copy share link
9. Paste into OBS Browser Source:
   • Width: 600–900 (varies with layout)
   • Height: 140–220
   • Enable “Refresh browser when scene becomes active” if rotating scenes
   • Set CSS if needed: body { background: rgba(0,0,0,0); }

Adapting to “Weird” Stream Setups

Deep Editing Guide (Fork & Extend)

1. Add a New Theme Token

Want a year badge or custom label?

a. Extend WidgetConfig:

// In utils/config.ts
theme: {
  // ...existing
  badge?: {
    text: string;
    bg: string;
    color: string;
  };
}

b. Add defaults to defaultConfig.

c. Update editor form (search for other theme inputs).

d. Render in w.tsx inside the layout:

{cfg.theme.badge && (
  <span
    style={{
      background: cfg.theme.badge.bg,
      color: cfg.theme.badge.color,
      padding: '2px 6px',
      fontSize: 11,
      borderRadius: 4
    }}
  >
    {cfg.theme.badge.text}
  </span>
)}

e. Link updates automatically—no backend change.

2. Custom Animation on Track Change

Insert a simple key transition:

const fadeKey = track?.name + track?.artist;
<div key={fadeKey} className="transition-opacity duration-300 opacity-100">
  {/* existing text */}
</div>

Or add a diffing usePrevious(track?.mbid) to animate only when truly new.

3. Adjust Polling Strategy

Inside useNowPlaying.ts:

• Introduce a prop fastPollMs and idlePollMs
• Replace constants with config
• Editor can surface an “Advanced” panel later

4. Swap Data Source (Prototype Spotify)

Create useSpotifyNowPlaying.ts with identical return signature. Add a source: 'lastfm' | 'spotify' field in config. Switch hook consumption in overlay.

5. Add Outline Option (Pseudo Stroke)

Enhance shadow util: if user picks “outline”, generate multi‑direction stacked shadows. Example:

function outline(color: string, r: number) {
  const dirs = [[1,0],[-1,0],[0,1],[0,-1],[1,1],[-1,-1],[1,-1],[-1,1]];
  return dirs.map(([x,y]) => `${x*r}px ${y*r}px 0 ${color}`).join(',');
}

6. Safe Mode (If API Fails)

Wrap network call → set a failed flag → overlay renders a placeholder like “(No Data)” or hides.

7. Adding a Secondary Line (Scrobble Count)

Extend config: showScrobbleCount: boolean. Add endpoint to call user.getInfo (cache lightly). Render under artist line if enabled.

8. Theme Presets

Create a presets.ts:

export const presets = {
  neon: {...},
  minimal: {...},
  card: {...}
};

Add a dropdown in editor to merge a preset into current config.

9. Multi‑Instance Coordination

If you embed twice (e.g., wide + compact), you can:

• Copy link
• Edit layout only
• Keep same session key (scrobbler state reused)

10. Don’t Leak Your Session Key

Add a toggle “Strip session key before copying public link”:

const safeConfig = { ...cfg, sessionKey: undefined };
const safeUrl = encodeConfig(safeConfig);

Image Proxy Notes

Route: /api/proxy-image?url=... Reasons:

• Prevent mixed content on HTTPS overlays
• Future: add resizing, caching headers, fallback image
• Avoid leaking direct Last.fm CDN access logs with your scrobble pattern (light privacy value)

Failure Modes & Handling

Security & Privacy

• Session key is NOT encryption—just convenience
• All config is client‑side; no analytics collection by default
• Consider adding a flag to anonymize artist/title (some streamers hide track names until after playback)
• If you fork publicly, document session key risk prominently

Interesting Simplifications

1. Hash‑only state (no DB complexity)
2. LocalStorage ghost copy (resilience w/o servers)
3. Adaptive poll + estimation instead of progress websockets
4. Per‑element shadow toggling (microcontrol without text duplication)
5. Single useNowPlaying abstraction (future multi-source friendly)

Problems Faced

What I’d Add Next

• Optional mini queue mode (show next track if available)
• Responsive container scaling (scale param)
• Built‑in theme gallery + preset importer
• Session key obfuscation (not true security, just accident prevention)
• Drag‑to‑reorder text elements in editor
• Auto‑color accent from album art (with contrast threshold)
• Framerate smoothing of progress bar (requestAnimationFrame)
• LZ-based compression for huge future configs

OBS / Streaming Tips

Deployment

Simple path:

1. Deploy to Vercel (defaults fine)
2. Add env vars
3. Set caching (optional) for /api/proxy-image
4. Protect fork if using personal session key (don’t check it in)
5. Use canonical production URL for OBS (avoid localhost caches)

Closing

This overlay leans into “link as artifact” thinking: shareable, forkable, transparent. Private profile compatibility plus theming depth makes it ideal for streamers who want control without another hosted dashboard.

If you fork it:

• Start by reading utils/config.ts
• Add one enhancement at a time
• Keep editor and widget separate in concerns
• Don’t prematurely add a backend unless you need shared state

Ship it scrappy. Refine with real scene usage. Let ergonomics, not ideology, drive the next tweak.
